Pass Through Type Shot Blasting Machine (DISA &

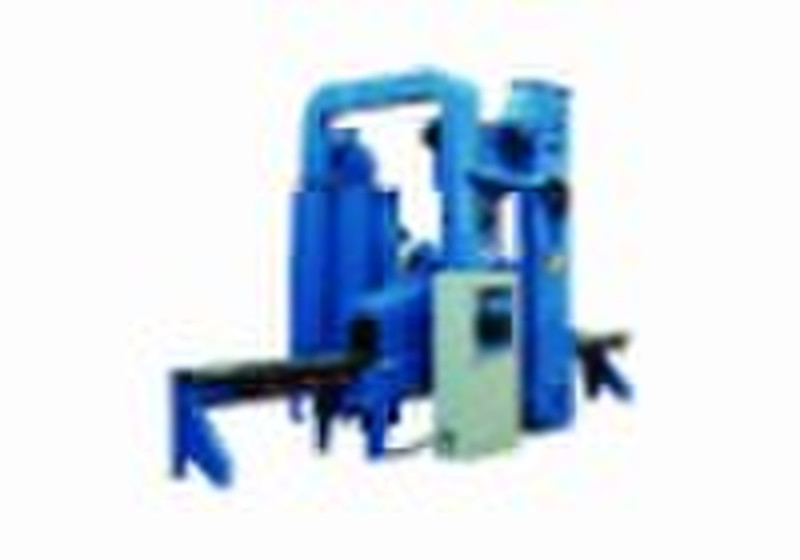

Intro of pass through type shot blasting machine: 1.Q69 series shot blasting machine is a multi-function steel material and profile steel treating equipment for cleaning steel plates and profiles.2.The world advanced high efficiency single disk curve blade impeller head projects bunches of pills in high speed and density to impact on the original surfaceof the steel material and cause the rust layer, welding slag, oxide skin and other stains fall offquickly.3.The steel material and work pieces obtain a clean surface in certain roughness, thusimprove the adhesion of lacquer film to the steel surface.4.The pill blasting gives steel work piece metallic luster on the surface and visible part, expose the surface defect and enhances the anti fatigue and corrosion resisting performance. It also improves the inner quality of the steel and prolongs its service life.The TechParameter of Q69 series shot blast machine:No.descriptionunitQ698Q6912Q6915Q6920Q6925Q6930Q69401Valid width of workpiecemm8001200150020002500300040002Valid size of the inlet of the chambermm800×4001200×4001500×4002000×4002500×8003000×8004000×4003Valid length of the workpiecemm1200-120001200-60001200-120001200-120003000-120002400-120004500-180004Roller transporting speed( steplessm/min0.5-40.5-40.5-50.5-40.5-4.50.5-42-85The thicjness of the cleaning steel platemm3-603-601.5-603-603-603-1104.5-1006The cleaned material specificationΦ16-28[≤20#≤16#[≤20#≤16#[≤20#≤16#60×8-300×10007Shot blasting amountkg/min4×2404×2404×2406×2406×2406×3008×3008Initial charge of shotkg200030004000450045008000110009height adjustment of the rotary brush(scraper)mm20035045060085090010Ventilation volumem3/h850017560190001955027758280503800011Machine sizemm25017×4500×901512180×4250×709515200×5370×679730650×6850×909531200×8070×750044042×6385×775845000×7830×1111712pitmm80016162257280023532800431713Total powernot include the dust removalkw78.378.3113.5156.6224.55204.8293.614Machine weightt2020.4334153.271.875Pictures of pass through type shot blasting machine:
